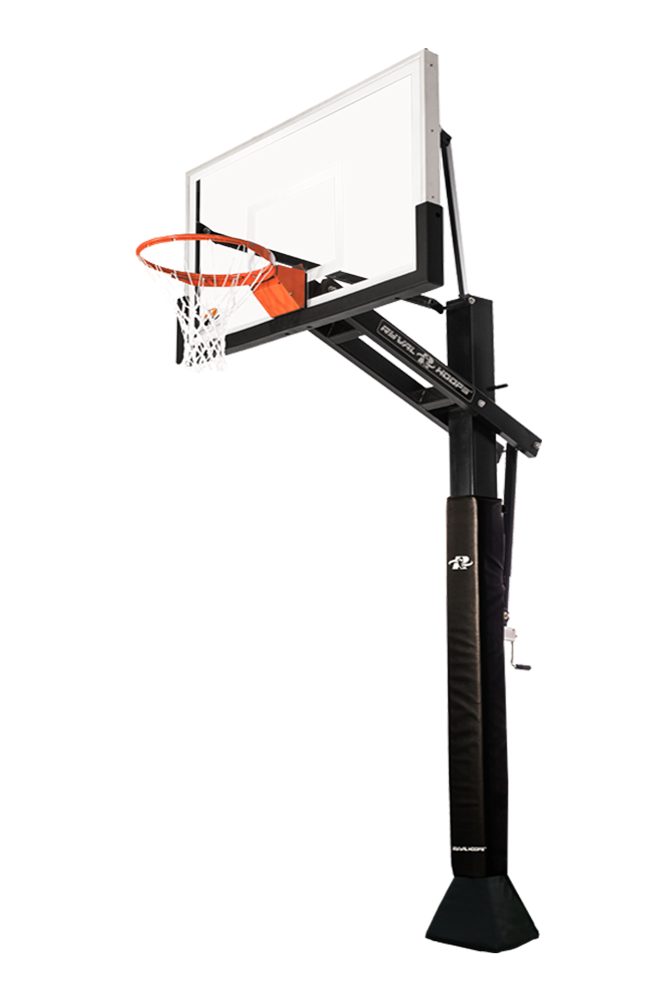

Ryval Phenom 60″ X660
$1,599.00
The Phenom X660 Clearview glass 60″ backboard eliminates the backboard frame out of the shooting square, giving it the arena/gym like look. The X660 has the right blend of size, player features and price, makes it one of our most popular goals. No additional accessories to purchase, it comes ready to play with backboard edge, pole & gusset padding. Adjustable range down to 7.5”, were younger players can work on proper shooting technique with lower rim height.
Description
The Phenom X660 Clearview glass 60″ backboard eliminates the backboard frame out of the shooting square, giving it the arena/gym like look. The X660 has the right blend of size, player features and price, makes it one of our most popular goals. No additional accessories to purchase, it comes ready to play with backboard edge, pole & gusset padding. Adjustable range down to 7.5”, were younger players can work on proper shooting technique with lower rim height.
 |

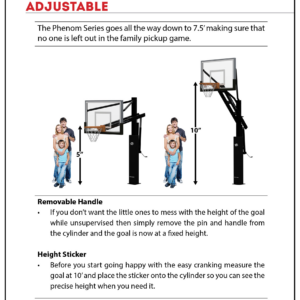

Precise Rim Height Adjustment The rim height indicator is set after concrete to ensure accurate rim height measurements. |
 |
11 guage Steel Pole The 11 gauge one-piece steel pole delivers maximum stability for gym quality rebounds. |
 |

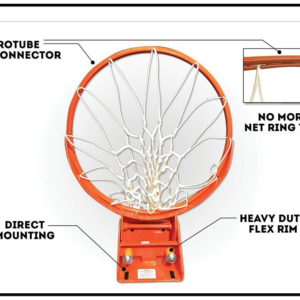

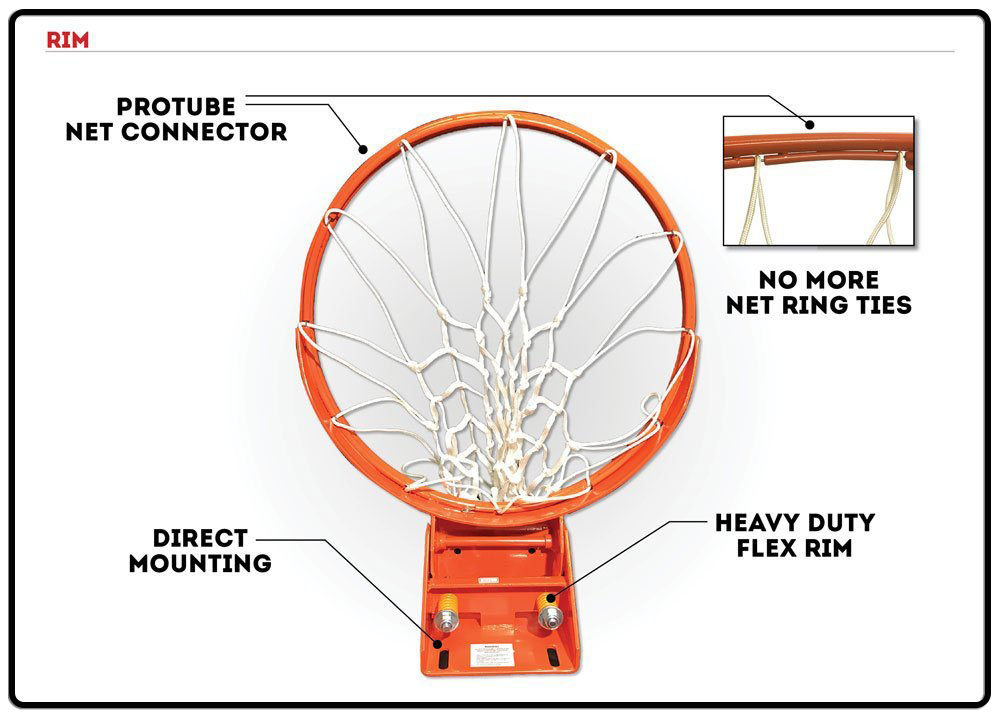

Dual Spring Heavy-Duty Break Away Flex Rim w/ProTube™ Net Connector |
 |

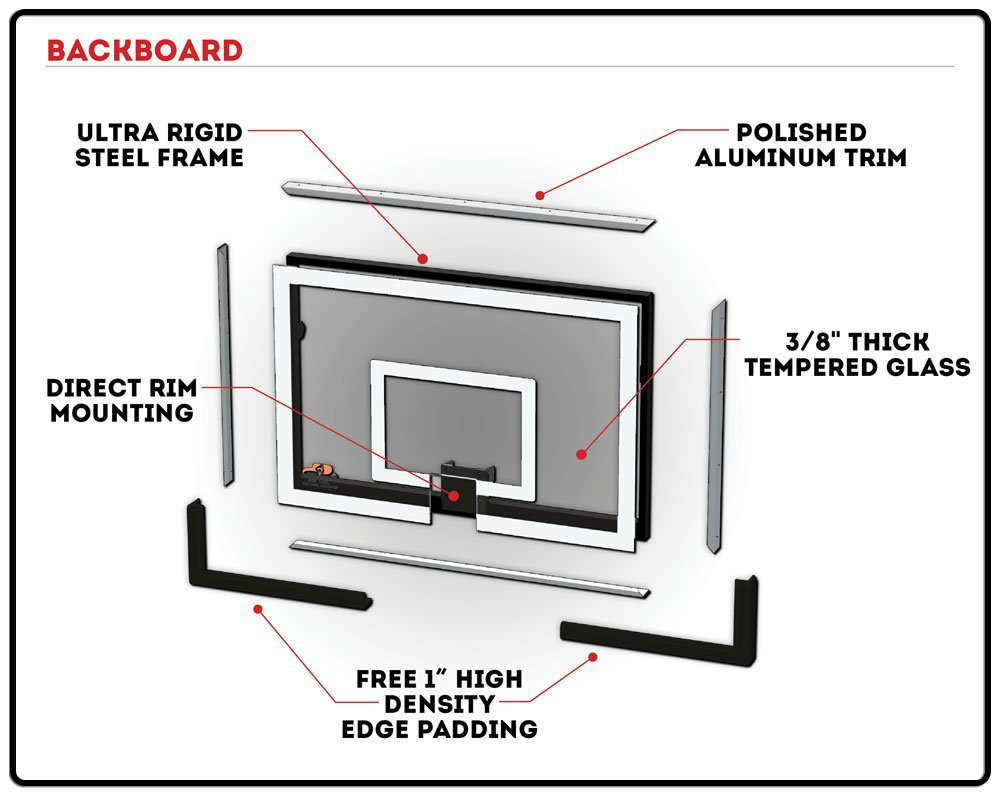

Superior Backboard Design 3/8″ Thick Tempered Glass Clear View backboard delivers a true gym quality bounce. |
 |
Protective Padding Free 1″ Backboard Edge Padding Free 1.25″ Pole and Gusset Padding |
 |
Superior Gusset Design The pole is secured to the base plate with 4 gussets adding stability and reducing sway. |
 |
XL Stainless Steel Hardware Hardware is upgraded FREE to XL Stainless Steel hardware ensuring maximum protection. |
 |
Superior Rust Protection Electroplated Zinc protective undercoat. Premium Black Powder Coat finishing coat. |
 |

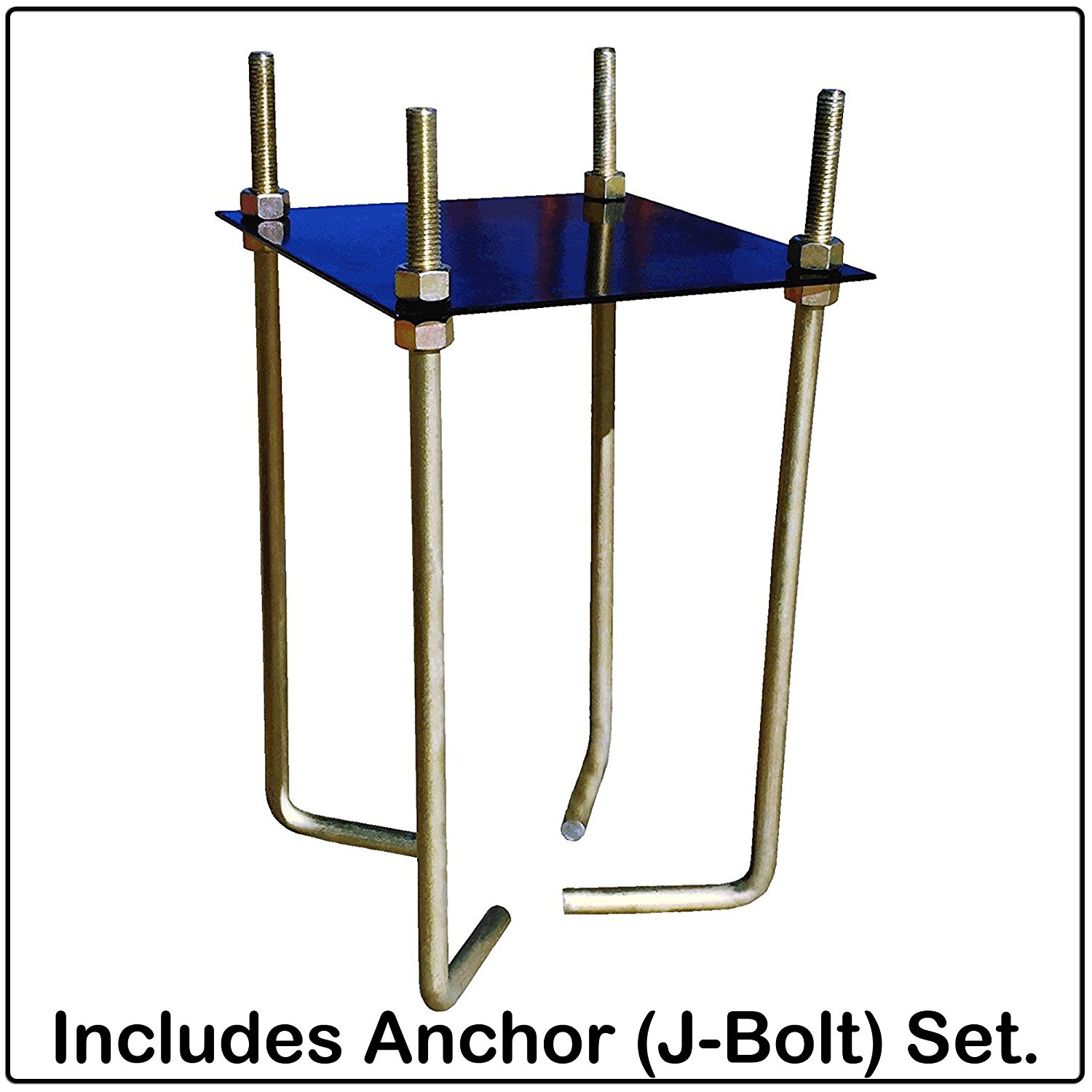

J-Bolt Anchor System The Pole is anchored to concrete pier with 4 J-Bolts. You can take your goal if you move. |
 |
Direct Rim Attachment Shatter Protected backboard by attaching the rim directly to the lower arm. |
 |
Regular Actuator Regular actuator with gear box. Removable Crank Handle. |
 |
Extension Arms Allows for larger overhang distance to keeping players from stepping off the playing surface. |
SPECS

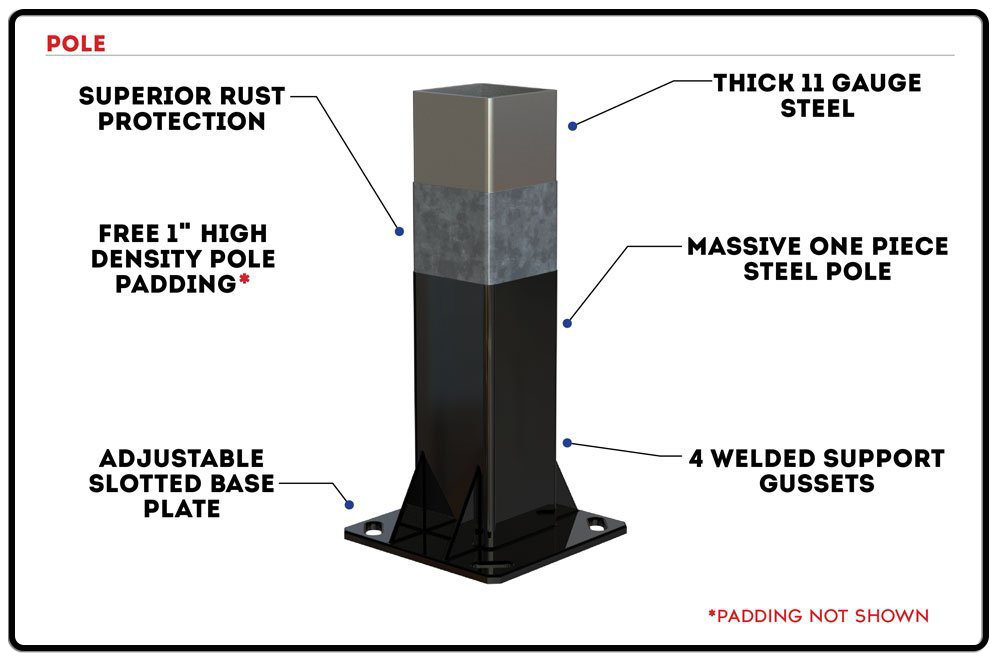

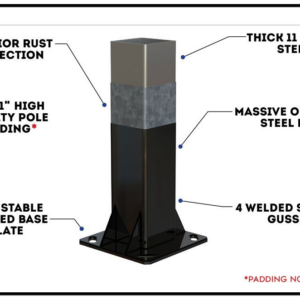

| Pole | |
|---|---|
| Pole Size | 6” x 6” with 11 gauge (1/8″) steel thickness |
| Pole / Gusset Padding | Free 1.25″ Thick Pole and Gusset Padding ($129 Value) |
| Flanged Base | 11″ Wide x 11″ Long Base with 9″ between Anchor Holes (Center to Center) |
| Flanged Base Holes | Slotted for minor adjustments |
| Gussets | 4 Welded Gussets (2 Front and 2 Rear) |

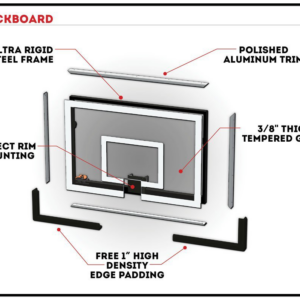

| Backboard | |
|---|---|
| Backboard Size | 60” x 38” x 3/8″ |
| Backboard Glass | Tempered Glass |
| Backboard Steel Frame | 2″ x 1″ on top and 2 sides; 2″ x 2″ on bottom steel perimeter frame concealed behind backboard |
| Backboard Aluminum Trim | 2-3/4″ x 1″ aluminum frame provides unmatched esthetics and protects glass from damage |
| Rim Mounting Type | Direct Rim Mounting directly to the goals lower arm with no risk of damaging glass |
| Backboard Padding | 1” thick edge padding pre-installed on backboard |
| Extension Arms | |
|---|---|
| Overhang | 2.5′ from front of pole to front of backboard |
| Main Extension Arm | 4″ x 2″ x 14 gauge (5/64″) steel thickness. Two cross members. |
| Upper Extension Arms | 2″ x 1″ x 14 gauge (5/64″) steel thickness. |

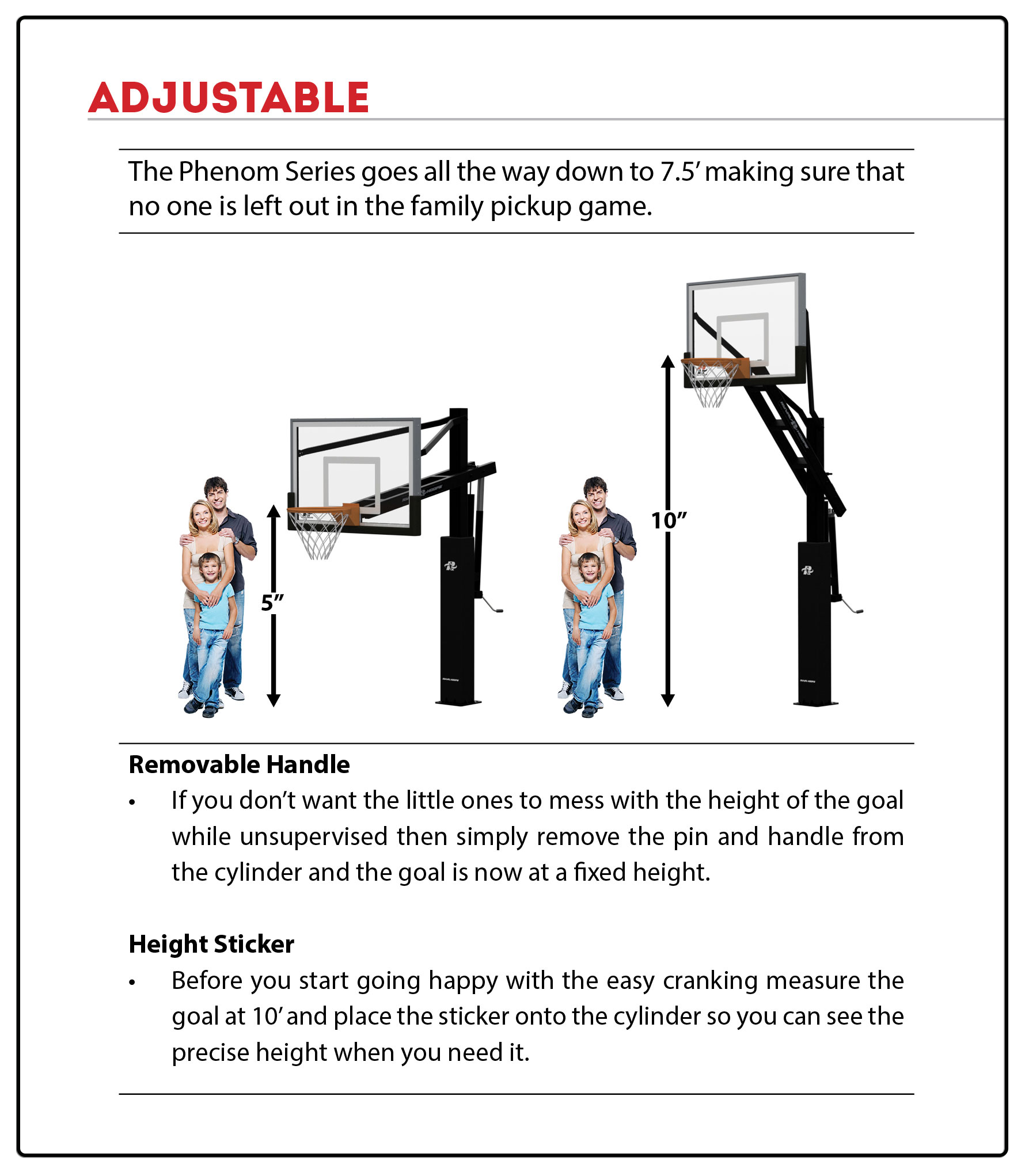

| Adjustable Height | |
|---|---|
| Adjustable | 7.5′ to 10′ |
| Crank Handle Height | 4′ |
| Crank Handle Type | Removable 90° Crank Handle |
| FX Lift Assist Cylinders | Not Available on this model |
| Rim | |
|---|---|
| Type | Dual Spring Heavy Duty Break Away Flex Rim |
| Net Connection | Pro Tube™ Net Connector |
| Rim Mounting Type | Direct Rim Mounting directly to the goals lower arm with no risk of damaging glass |
| Rust Guard | |
|---|---|
| Hardware Protection | XL Stainless Steel Hardware |
| Frame Protection Undercoat | Electroplated Zinc |
| Finish Coating | Premium Black Powder Coat |
| Anchor | |
|---|---|
| Moveable to new location | Yes, Just need a new J-Bolt Kit |
| J-Bolt Quantity | 4 |
| J-Bolt Size | 3/4″ diameter 19″ Long |
| Warranty | |
|---|---|
| Warranty Type | Lifetime Warranty |
| Dunking & Hanging | Warranty covers dunking & hanging |
